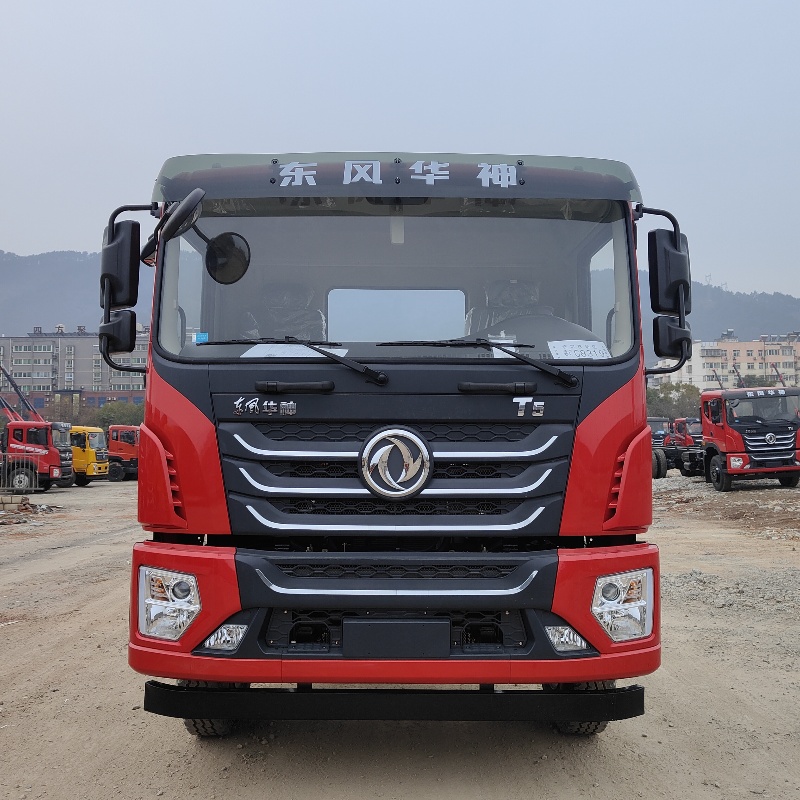

Cab | Single Row Cabin T702B |
Engine | YCS04200-68 |
Transmission | 8JS85E-C with flange PTO |
Frame Section (mm) | 280*(8+4+5) Straight triple-layer |
Wheelbase (mm) | 4500/5100 |
Leaf Spring | 9/11+8 |
Front/Rear Axle | 5T/10T |
Tires | 10.00R20 |
Superstructure | Compatible with 6.3T-10T crane |
Gross Weight (kg) | 18,000 |
Curb Weight (kg) | 12,090/11,550 |
Cargo-Fuel Dimensions (mm) | Multiple configurations: 4800-6100 × 2400-2450 × 550-600 (L×W×H combinations) |
Optional Features | Factory-installed AC, Air Suspension Seat, Remote Central Control, Multi-lock System, Sun Visor, Travel Recorder, Multifunction Steering Wheel |
