1. Powerful Performance & Efficient Drivetrain
Yunnei YN25AL Engine: 107 kW (145 HP), delivering robust power for heavy-duty transport.
Wanliyang 6GS40 6-Speed Transmission: Smooth shifting and improved fuel efficiency.
2. High-Load Chassis & Durability
Double-Layer Frame (180mm Width): Reinforced structure with high torsional resistance for demanding operations.
4.5-Ton Rear Axle + 2.4-Ton Front Axle: Exceptional load capacity for heavy cargo.
7.00R16 Steel-Belted Tires + Steel Rims: Durable and reliable for rough terrains.
3. Professional Superstructure for Efficient Loading/Unloading
Hydraulic Folding Deck:
Extended 5,400mm Platform (1,268mm foldable tailboard) for larger cargo space.
2,520mm Width, accommodating various cargo sizes.
Reinforced Tailboard (2.5mm HG70 punched plate / optional 4mm tread plate), offering superior load-bearing and anti-slip properties.
Optimized Subframe Design:
Extended rear section + widened tailboard with sliding channel for enhanced stability.
Front Pulley System + Hook Design: Effortless cargo handling and towing.
4. Safety & Comfort Features
Air Brake with Parking Function + Cruise Control: Ensures safer braking and relaxed long-distance driving.
1,880mm Mid-Size Cab (3-Seater): Spacious and ergonomic for operator comfort.
5. Multi-Functional Expandability
Optional 2-Section 2-Ton Tow Arms: Supports towing needs for versatile applications.
Hydraulic Cylinders (Ø50-63mm): Ensures stable lifting, tilting, and folding operations.

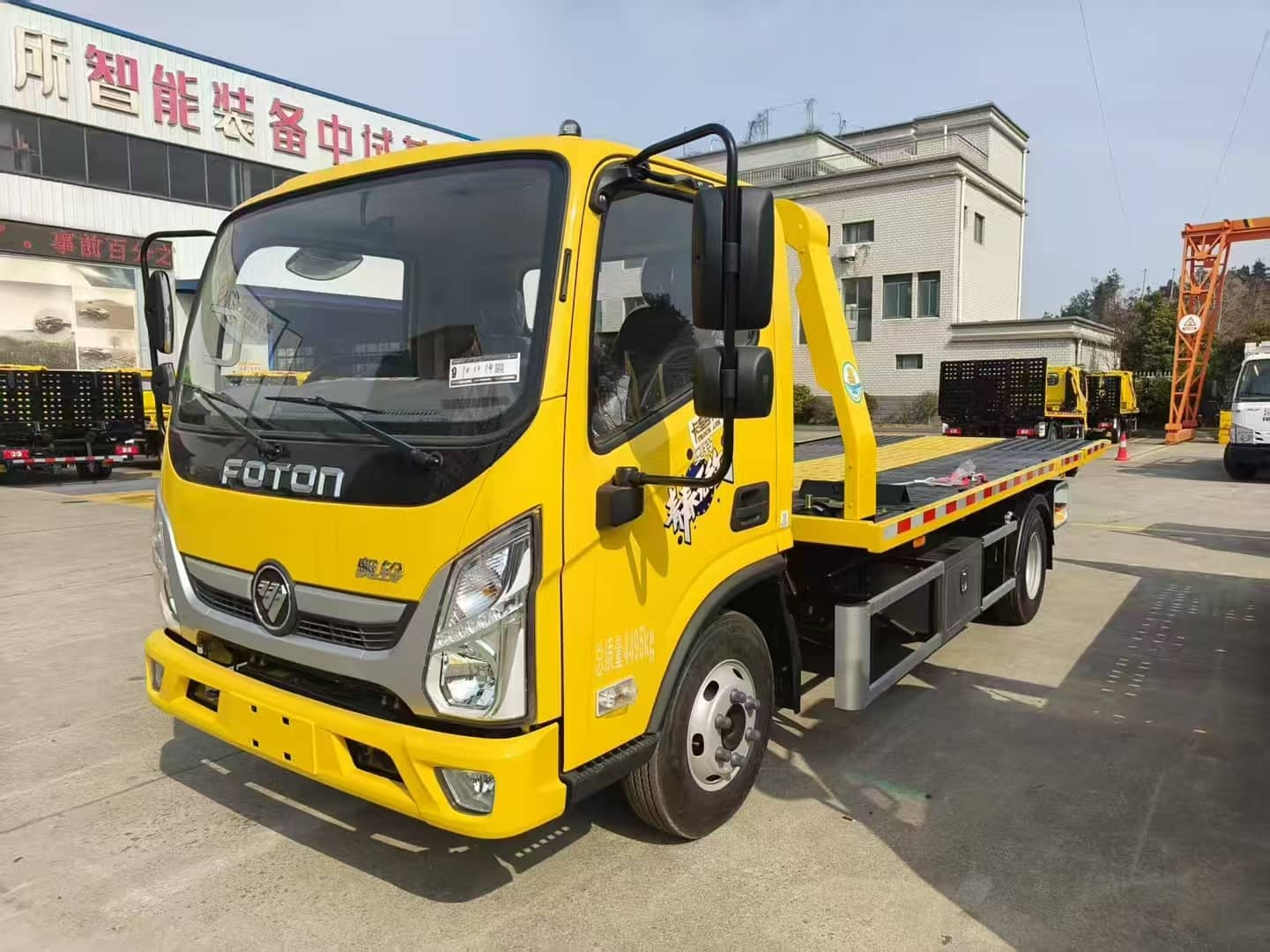

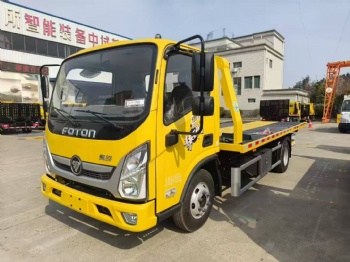

Vehicle Model: ABL5042TQZP6A
Curb Weight: 2,800 kg
Overall Dimensions: 5,995 mm (length)
Chassis Configuration & Technical Parameters
Chassis Model: BJ1045V9JDA-AB1

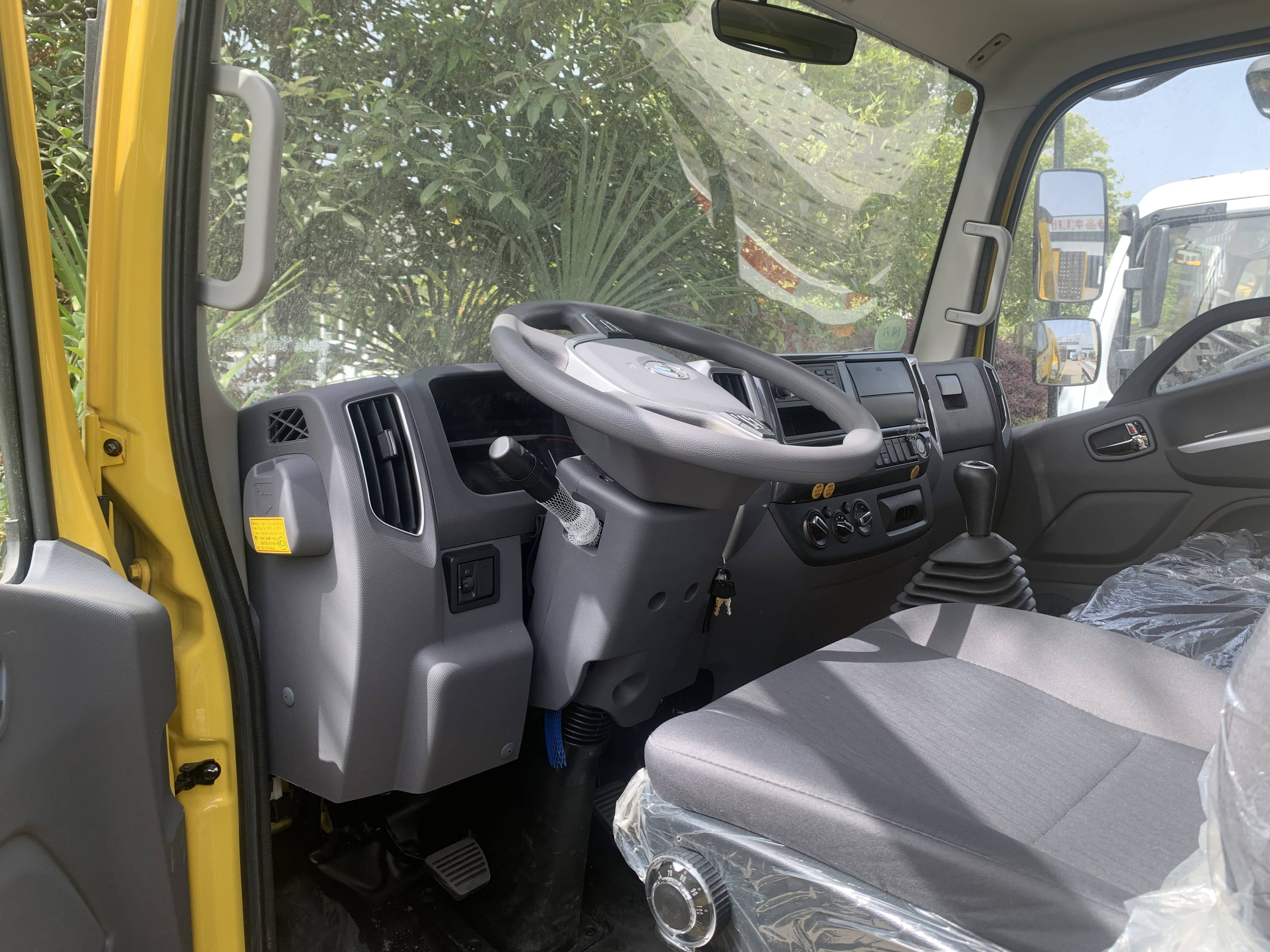

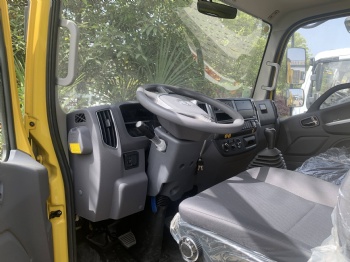

Cab: 1,880 mm mid-size cab, 3-seater
Braking: Air brake with parking function (breakaway braking)
Cruise Control: Equipped
Engine: Yunnei YN25AL, 107 kW / 145 HP
Transmission: Wanliyang 6GS40 (6-speed manual)
Wheelbase: 3,600 mm
Frame: 180 mm wide, double-layer reinforced frame
Axles:
Front axle: 2.4-ton capacity
Rear axle: 4.5-ton capacity

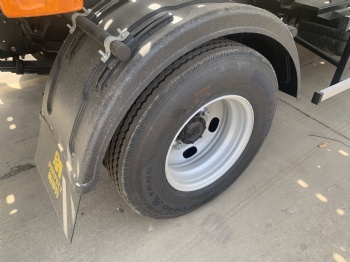

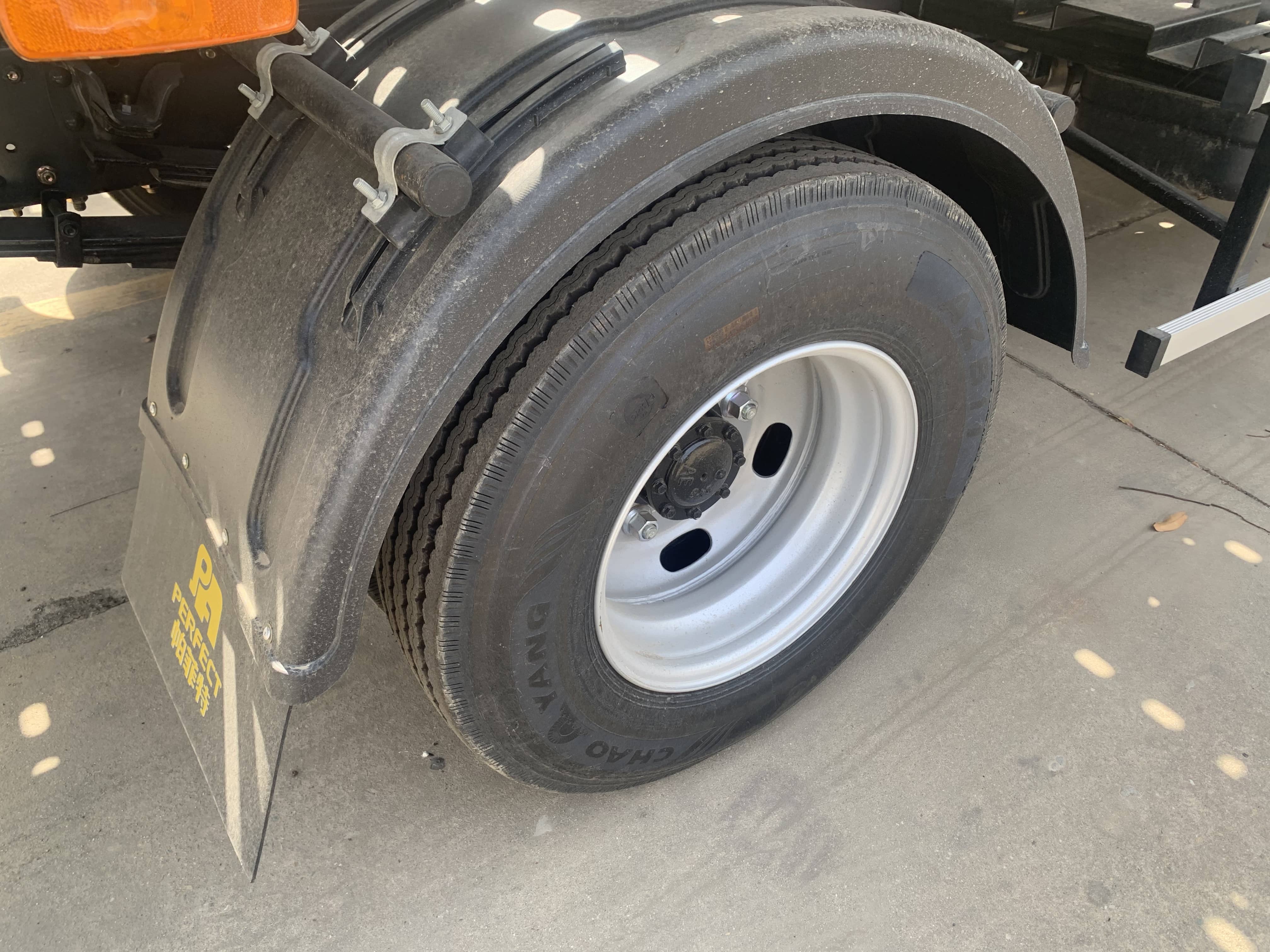

Tires: 7.00R16 steel-belted radial tires
Wheels: Steel rims
Superstructure Configuration & Technical Parameters
Palfinger Reinforced Standard Load Superstructure:

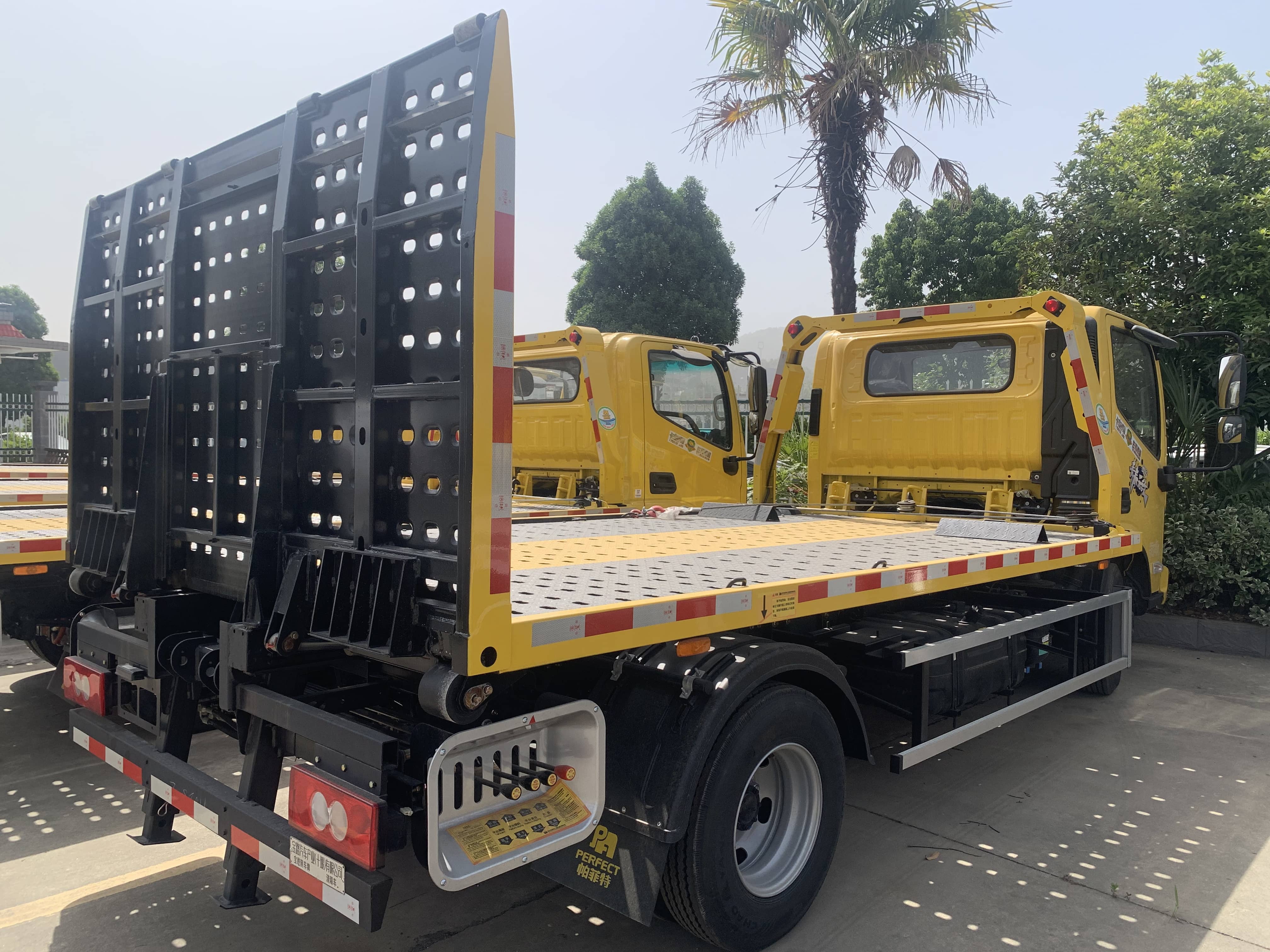

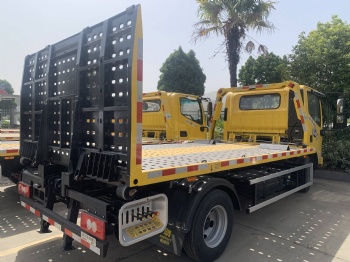

Hydraulic Folding Integrated Deck:
Side plates: 1.2 mm high perforated plates (post-registration, 4 mm diamond-pattern tread plates fully laid).
Tailboard: 2.5 mm thick HG70 punched and flanged plate (optional 4 mm tread plate with center sealing).
Deck Dimensions:
Total length when extended: 5,400 mm (folded tailboard length: 1,268 mm).
Deck width: 2,520 mm.
Subframe Optimization:
Rear section extended to maximize vehicle length.
Tailboard inner width increased and reinforced with an added sliding channel to enhance load-bearing capacity when lowered.
Additional Features:
3 sets of pulley brackets at the front.
Front-mounted hook-type pulley assembly.
Optional 2-section 2-ton rear tow arms.
Hydraulic Cylinders:
Deck extension/retraction: Ø63 mm
Deck tilt: Ø50 mm
Tailboard folding: Ø63 mm
Tow arm extension/retraction: Ø63 mm
Tow arm lift/lower: Ø63 mm
