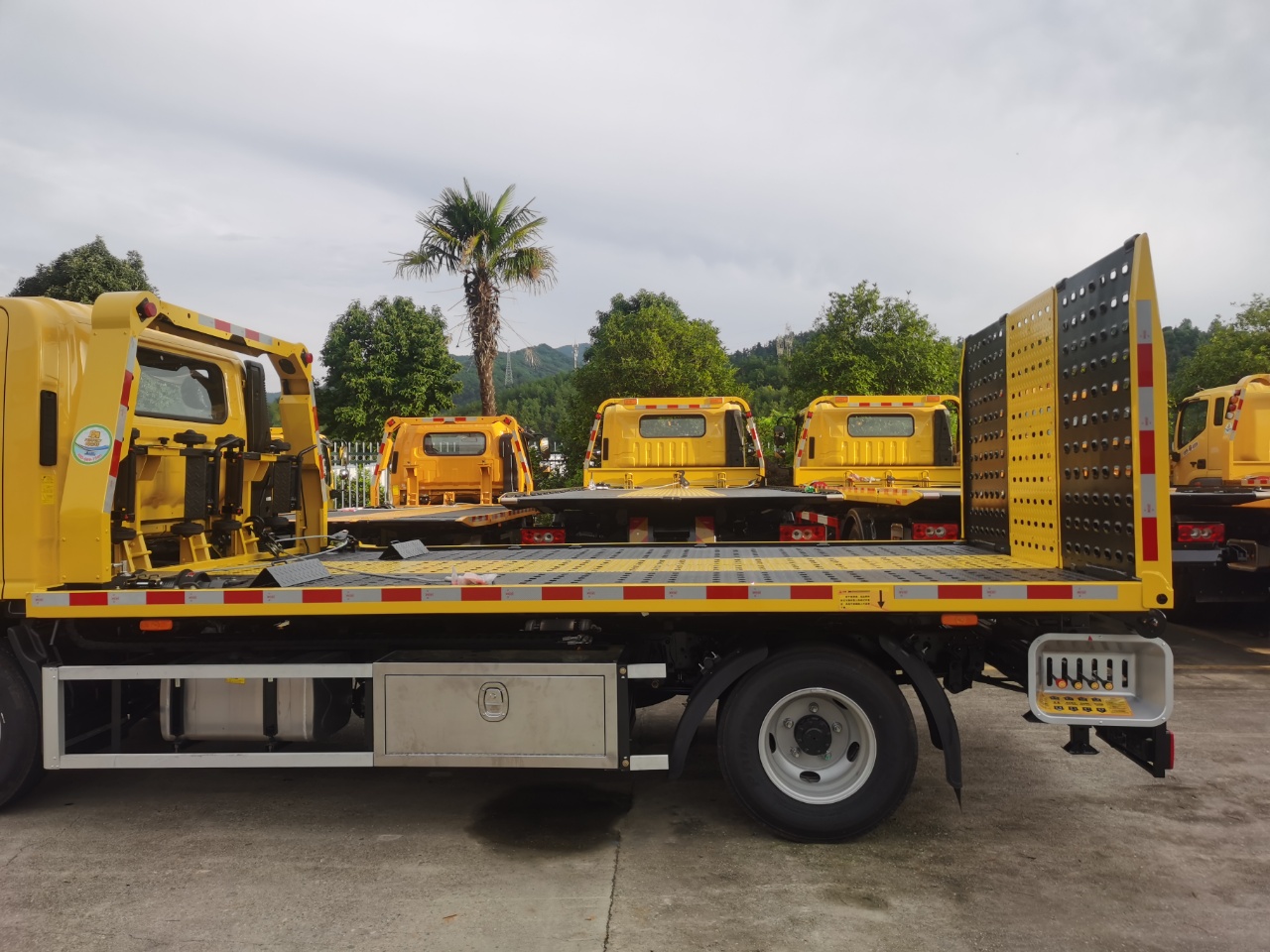

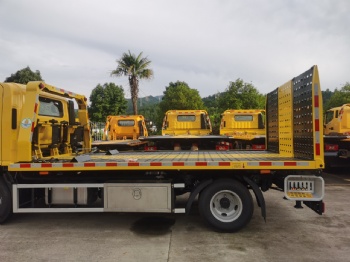

Aoling Suyun Euro IV 3600mm-Wheelbase Blue License Plate Flatbed Tow Truck

Technical parameters of the entire vehicle

Vehicle model: ABL5042TQZP6A

Preparation quality 2800gk

Overall dimensions: 5995×2530 ×2280

Chassis configuration and technical parameters

Aoling Express Edition Chassis model: BJ1045V9JDA-AB1 1880 mid-body cab, 3-seater, air brake, cruise control; Oukang 4F25TC transmitter, 116KW/158 horsepower; Wanliyang WLY6GS46 six-speed transmission 3600mm wheelbase; 180mm frame The front axle is 2.4 tons and the rear axle is 4.5 tons. 7.00R16 steel wire tire Iron steel ring Steel rim, leaf spring: 3/5+2

Comfort and safety configuration:

Multi-functional steering wheel, electric glass, central locking

Superstructure configuration and technical parameters;

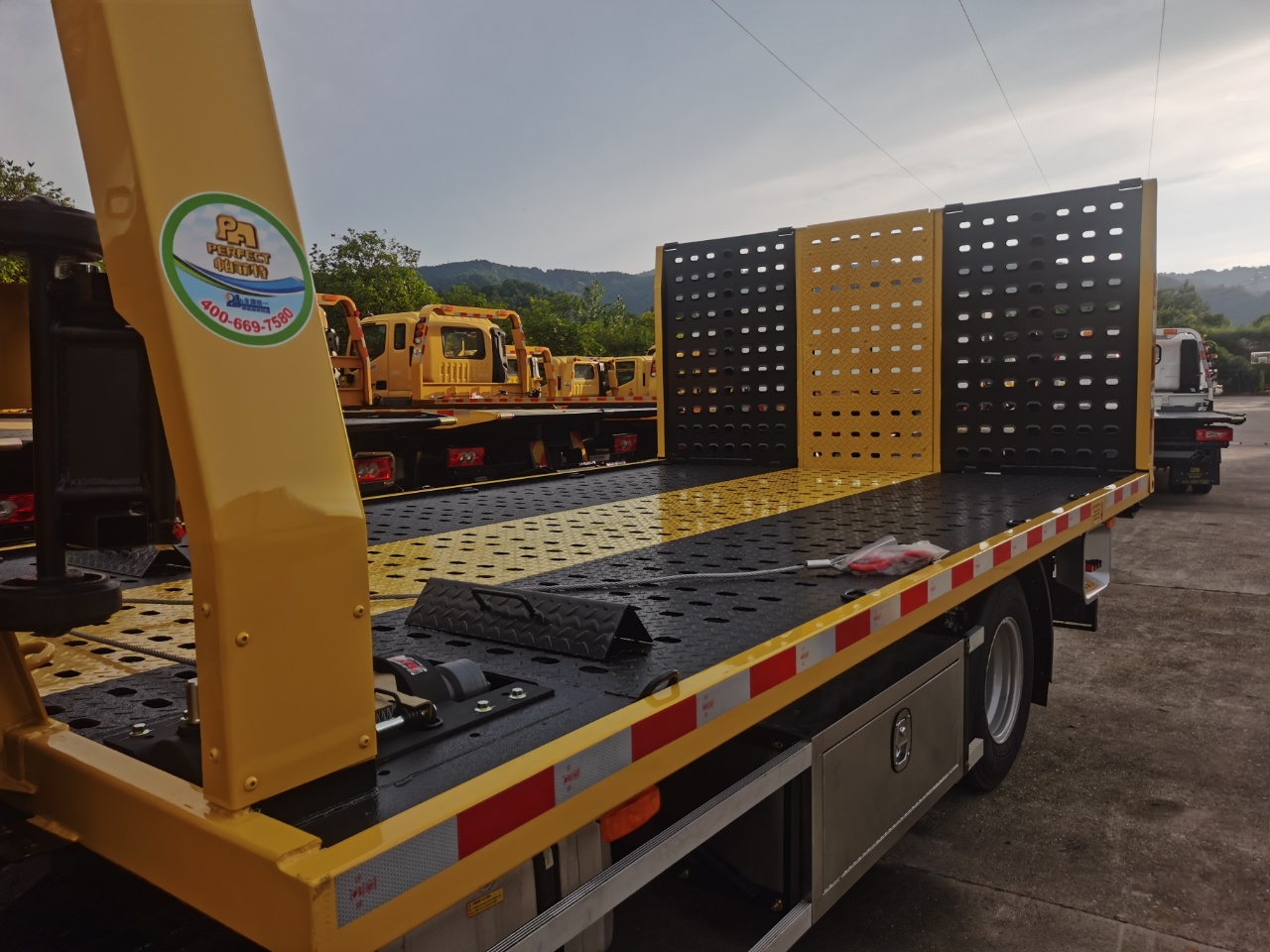

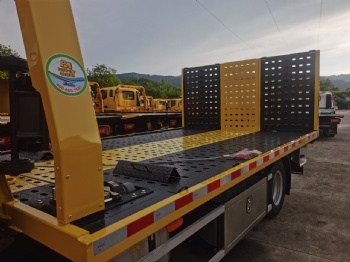

1. Hydraulic folding integrated plate, the bottom plates on both sides of the flat plate are 1.2mm high with perforated plates (4mm checkered plates are fully laid after installation), and the tail plate surface is 2.5mm thick HG70 perforated and flanged plate (4mm checkered plates are optional with middle sealing plates)

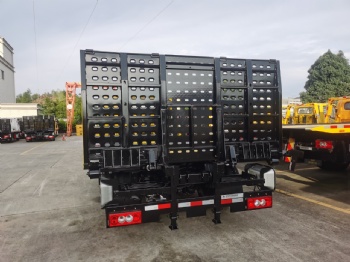

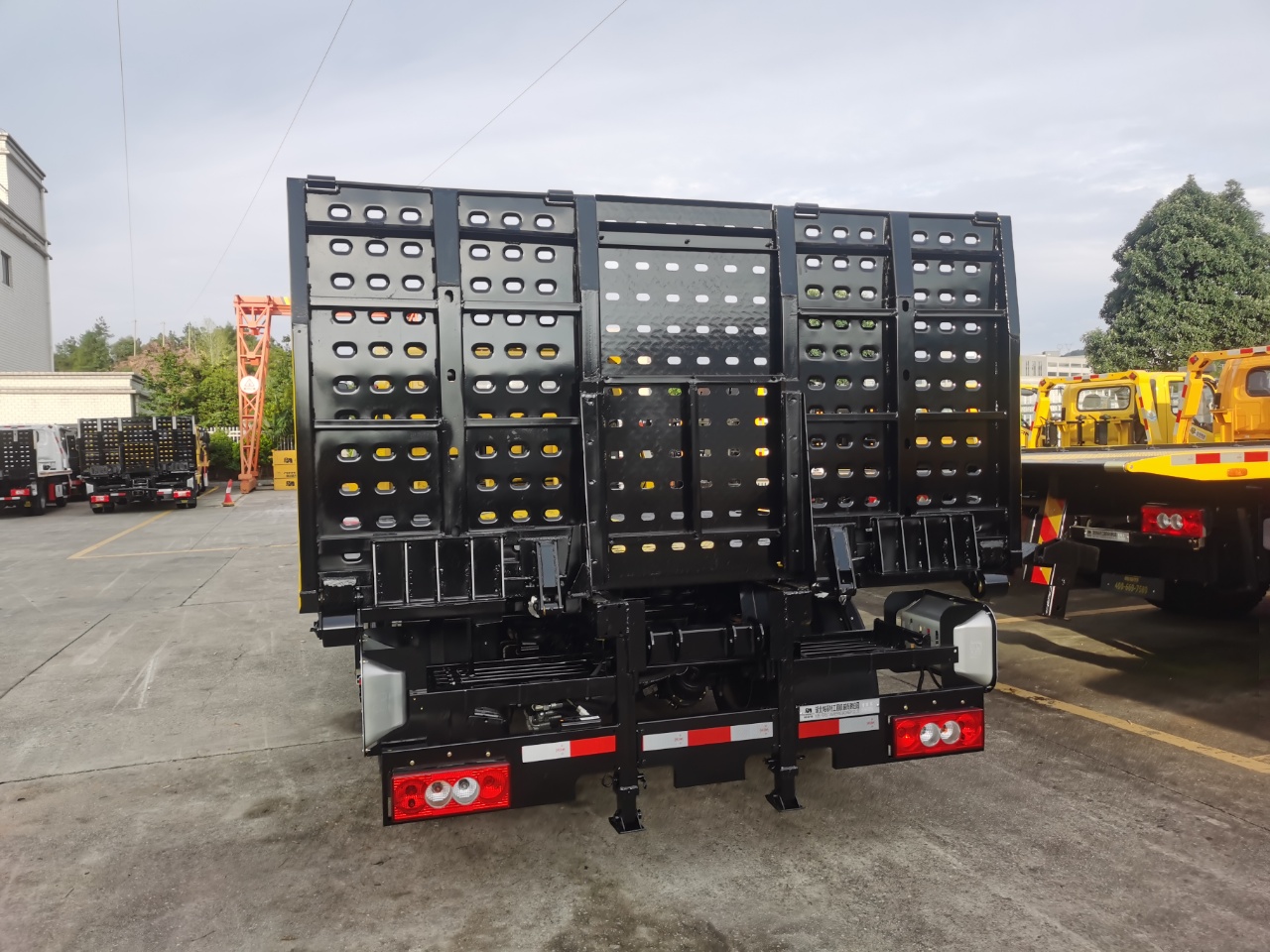

2. After the tailboard is laid flat, the total length of the plate is 5400mm(the folded tailboard is 1268mm long) and the width of the plate is 2520mm.

3. The rear section of the subframe reaches the maximum length of the entire vehicle. The inner side of the tailboard is widened and reinforced. A slide groove is added so that the rear section of the tailboard is placed flat and then rests on the beam, thereby enhancing the load-bearing capacity of the tailboard

4. Three sets of pulley supports are provided at the front end of the plate, and a hook-type pulley block is installed at the front of the plate. \ n5. Two 2T rear drag arms can be added. 63 in the flat plate lifting and retraction cylinder, 50 in the flat plate tilting cylinder, 63 in the tail plate folding cylinder, 63 in the boom lifting and retraction cylinder, and 63 in the boom high and low cylinder:
