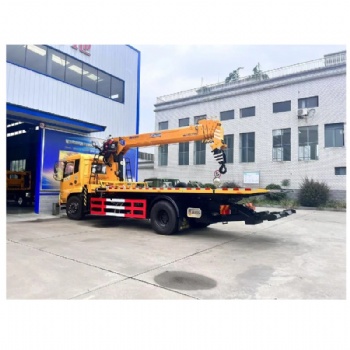

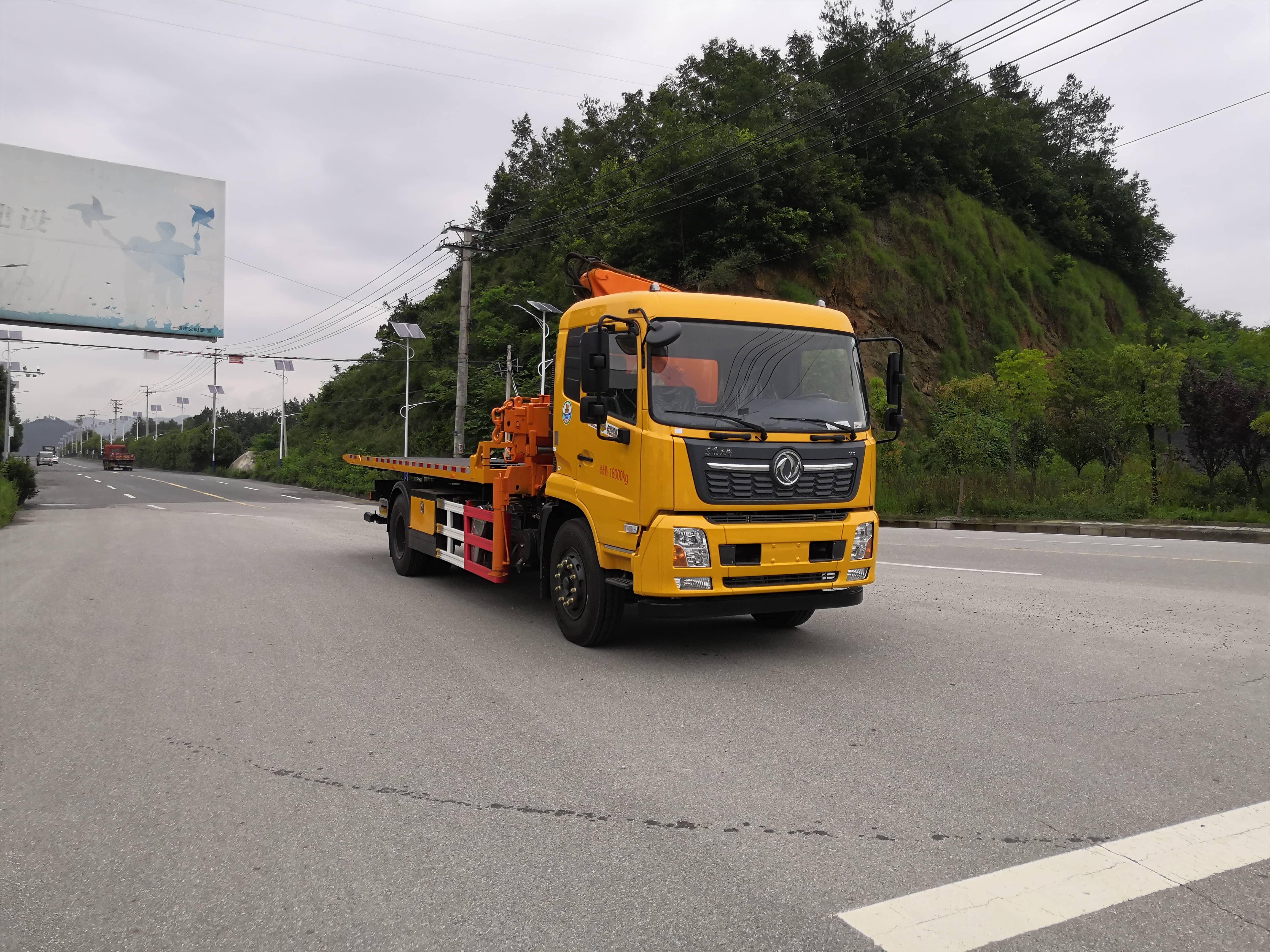

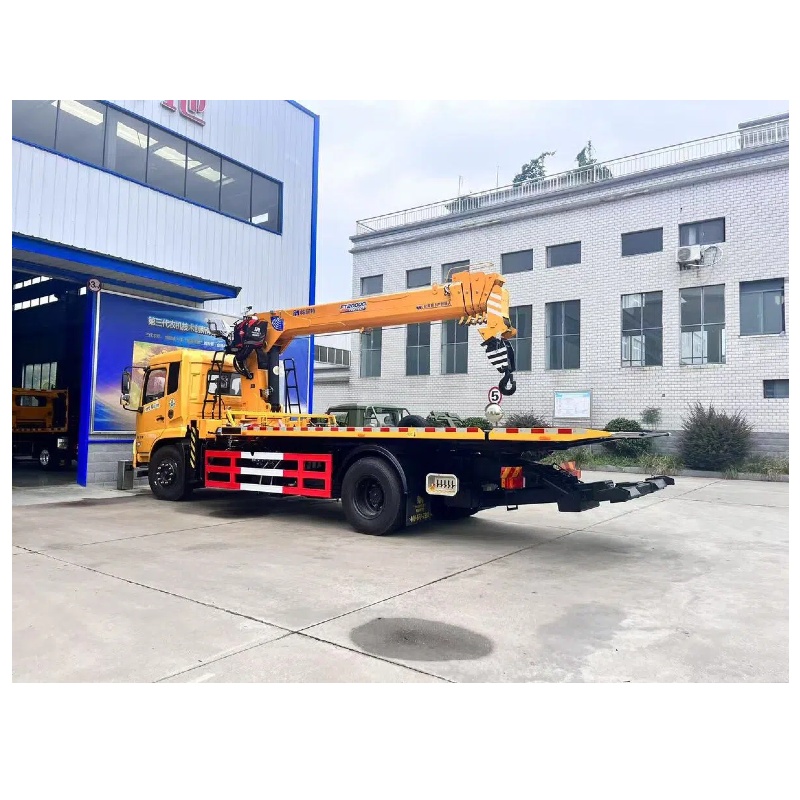

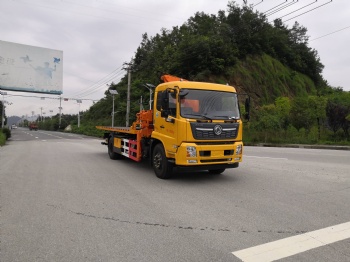

Dongfeng Tianjin 5-meter wheelbase Pafite 8-ton five-section boom flatbed truck with crane and tow truck

Technical parameters of the entire vehicle

Vehicle model: PFT5180TQZP6A

Curb weight: 14,800 kg

Overall dimensions: 9680×2550×3700

Chassis configuration and technical parameters

Dongfeng Tianjin truck-mounted crane special chassis, model DFH1180B5: D530 flat top row half body; Dongfeng Cummins B6.2NS6B210 engine Fast 8JS85M high and low speed eight-speed transmission; 5000mm wheelbase 300mm straight-through three-layer frame; The front axle is 4.5 tons and the rear axle is 9 tons (speed ratio 4.875). 10.00R20 18PR steel wire tire, steel plate 8/10+8.

Superstructure configuration and technical parameters

Pafite 10-ton flat plate upper structure: Flat plate length 6350mm, inner width limit 2500mm, 6mm checkered plate, plate surface perforated, anti-slip and wear-resistant; Tailplate hydraulic folding 1400 Flat plate telescopic cylinder 100, flat plate lifting cylinder 90, boom lifting cylinder 125; Do not lower the center of gravity; A 10-ton two-section rear boom is placed on the main beam, and with a hydraulic flip tailplate, it can lift heavy trucks within 20 tons. Five-ton worm gear and worm winch Standard configuration: Tablet wireless remote control; Standard equipped with a reversing camera.

Configuration and parameters of truck-mounted cranes

Pafite FT20000:8-ton five-section straight boom, double-cylinder telescopic, two booms can be single out, upper operation, boom length 18 meters, front outriggers span 5.9 meters. Manual operation, double pump.

Lifting capacity:

Lift 8,000 kilograms from 2.5 meters.

It can lift 4,000 kilograms from 5 meters

A height of 18 meters can lift 400 kilograms
