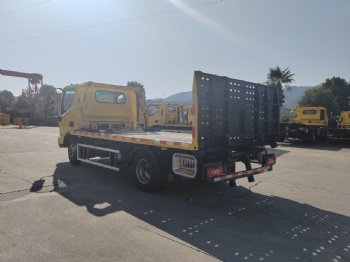

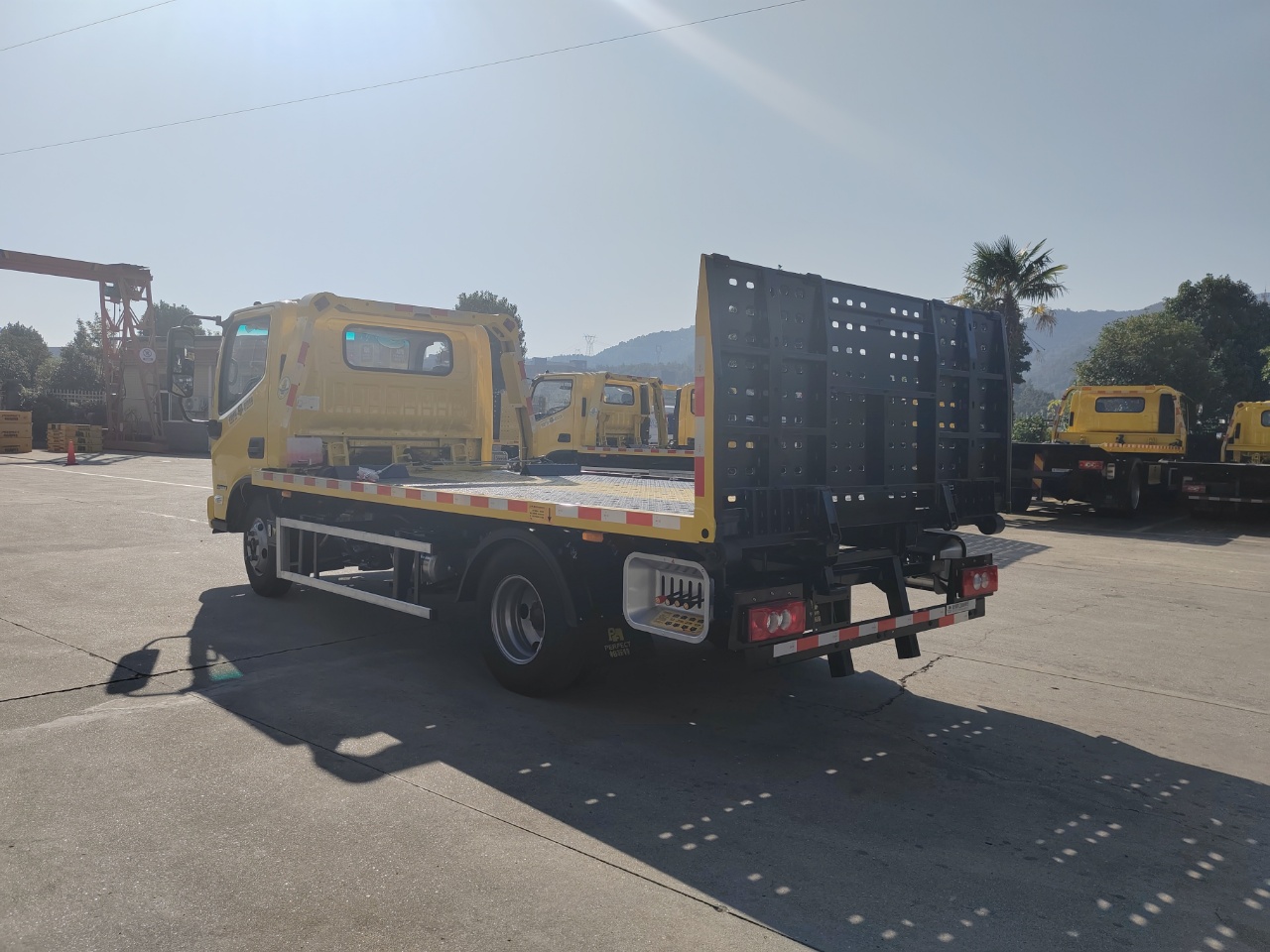

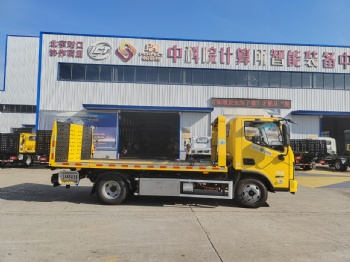

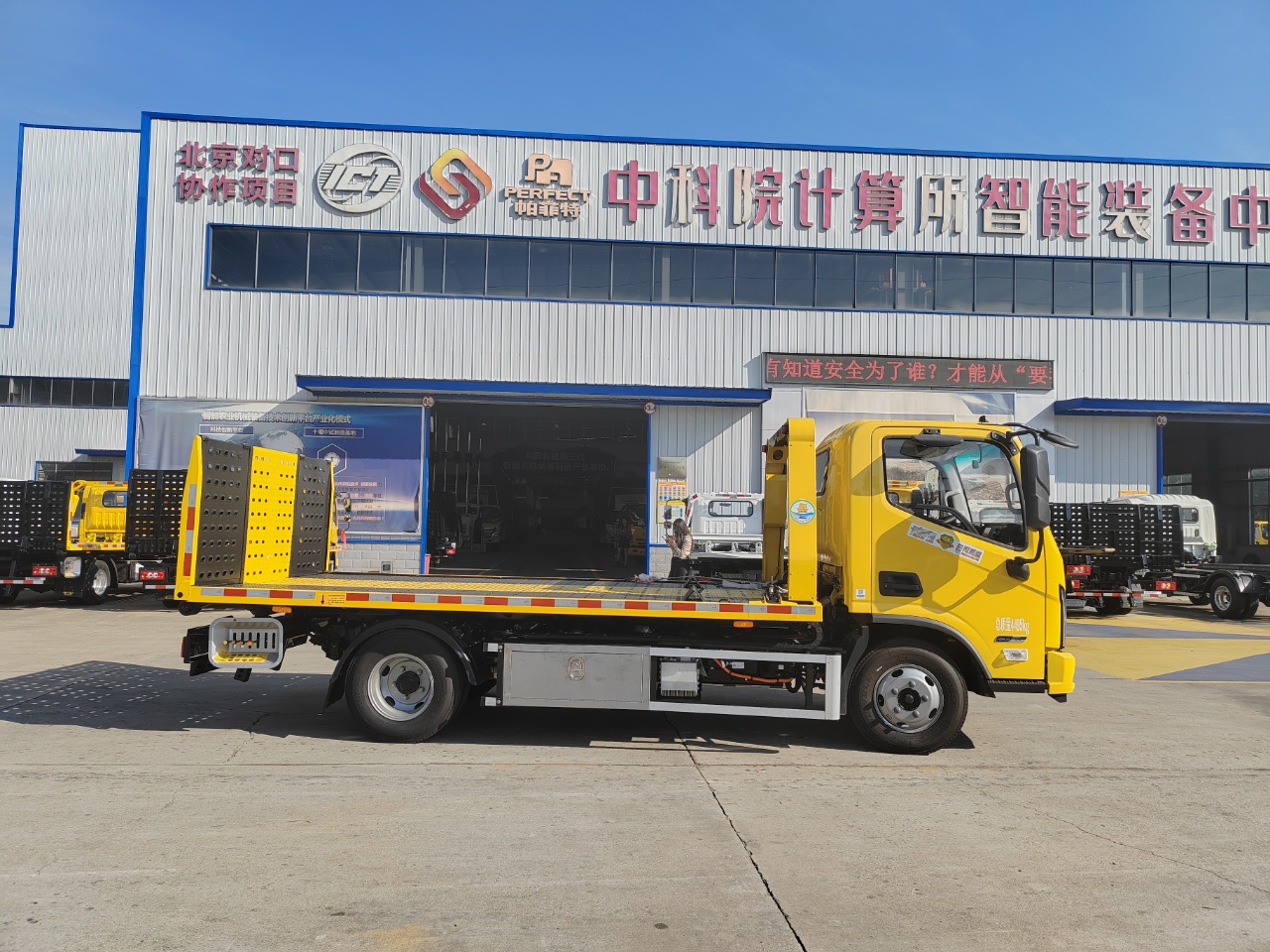

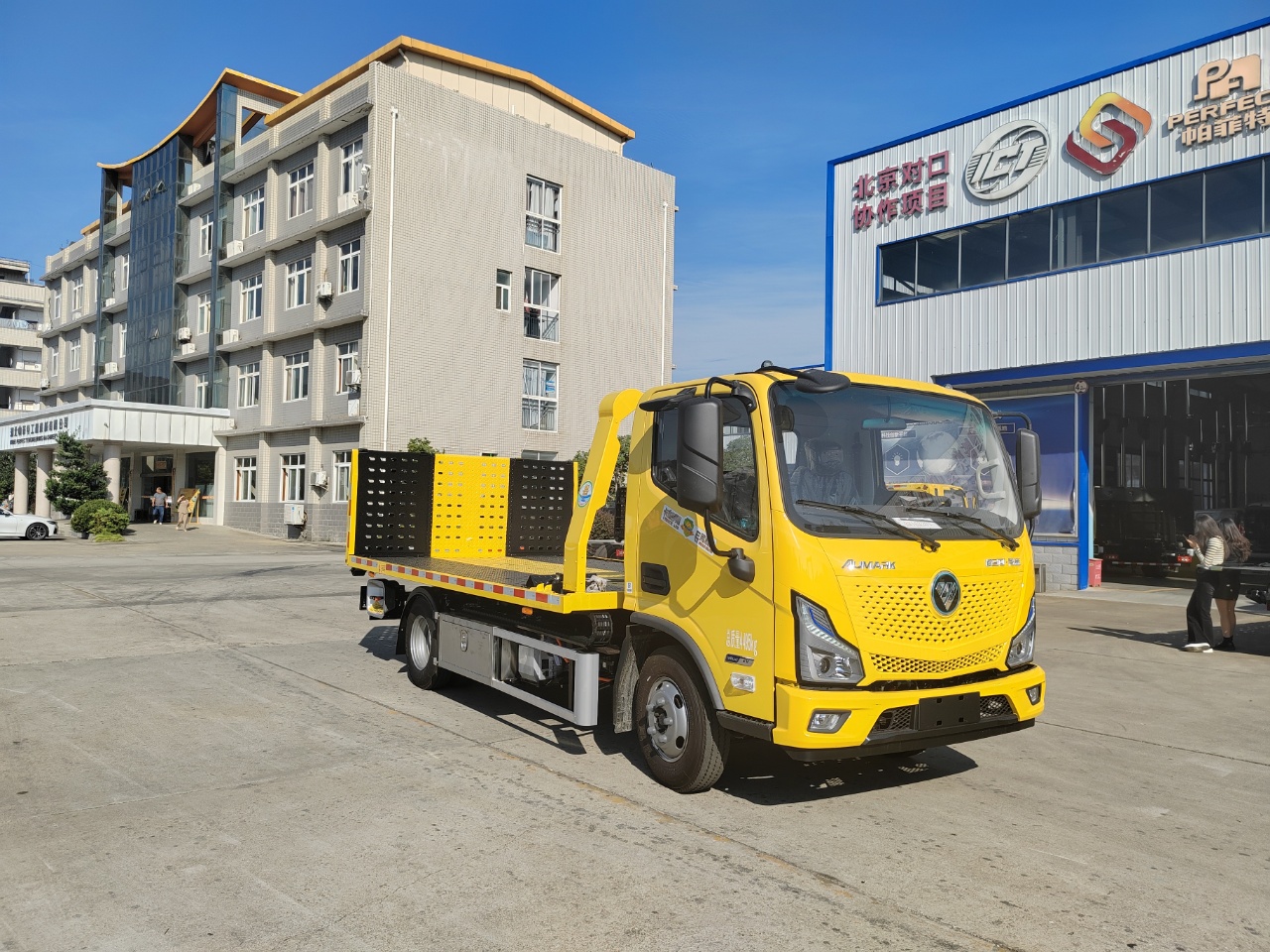

Vehicle model: PFT5041TQZBEV
Overall dimensions: 5995×2420×2260mm
Total mass: 2800kg
Chassis technical parameters and configuration
Wheelbase: 3360mm
Cab width: 1880mm, automatic transmission, capable of accommodating 3 people
Motor model: FTTB065B (Foton)
Rated/peak power kw: 65/120
Battery: Contemporary Amperex Technology Co., LTD
Total power consumption (kwh) : 100.46
The front and rear axles are 2.4T/4.5T
Front disc and rear wedge brake
Steel plate spring: 3/5+2
Tire: L7.00R16-8PR-LT, steel rim
Technical parameters and configuration of the upper assembly
The plate frame is welded with high-strength and ultra-high-strength profiles. The plate is made of 1.2mm thick ultra-high-strength perforated plates on both sides, with 4mm thick patterned plates laid flat on the plate surface. The main board is 4200mm long, the hydraulic tail plate is 1000mm long, the total length of the plate is 5200mm, and the outer width of the plate is 2410mm.
Flat plate telescopic cylinder φ63, flat plate tilting cylinder φ50, tail plate folding cylinder φ50.
4T planetary gear hydraulic winch
The first three sets of guide wheel supports of the flat plate are standardly equipped with hook-type guide wheels.
