Dongfeng EV7.3T Pure Electric Truck with Skateboard Chassis & CATL Battery

Vehicle model: PFT5070TQZBEV

Chassis technical parameters

Total mass: 7,360 kg, Wheelbase: 3,300 mm

Total storage capacity of the energy storage device: 100.46kwh. Battery manufacturer: CATL

Drive motor layout type/position: Electric drive axle Handbrake type: Electronic handbrake with AUTOHOLD function

Technical parameters of the upper assembly

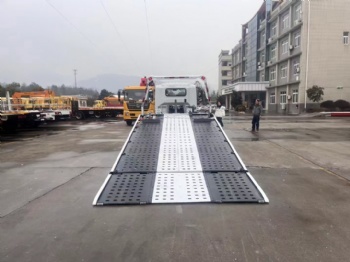

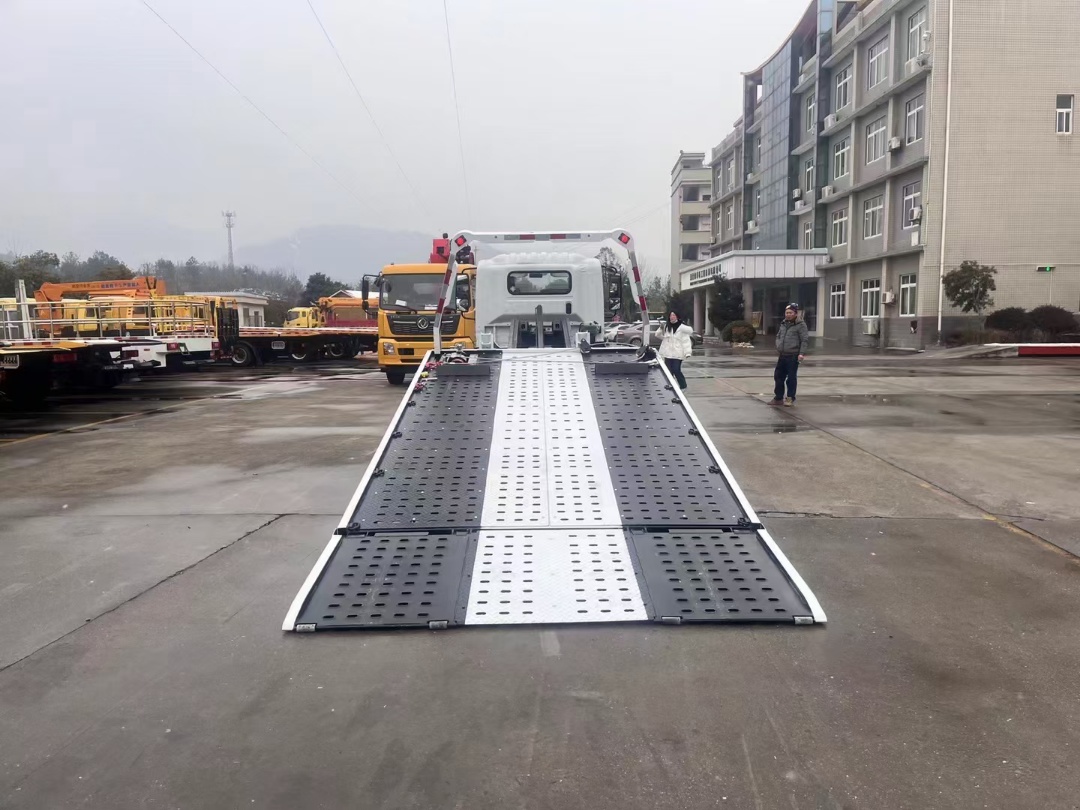

The 4mm thick checkered plate is laser-punched. The left and right load-bearing parts of the plate surface are sandblasted with patented anti-slip sand. The maximum load-bearing capacity of the flat plate is 4500kg.

The flat plate is 4200mm long + the double-cylinder hydraulic folding tail plate is 1000mm, with a total length of 5200mm. The width of the flat plate is 2530mm.

The height of the plate surface from the ground is 980mm-1050mm, and the minimum Angle between the plate and the ground is only 7.5°.

4-ton hydraulic winch An optional 3T rear drag arm is available for 5,000 yuan.

Product highlights

Dongfeng Huashen EV 7.3-ton class yellow and green license plate, pure electric forward developed body.

Improved motor, electric drive axle, skateboard-type chassis structure, all motor-controlled frame is centrally placed, stable center of gravity and safer.

Catl offers a 100-kilowatt-hour battery with an 8-year or 400,000-kilometer warranty, as well as a 5-year or 200,000-kilometer warranty for the motor and electrical control device.

The driving range is 287 kilometers when fully charged (100%-10%).

Supports fast charging. It only takes 35 minutes to charge from 20% to 90%.

The normal maintenance cost of the chassis is 2,500 yuan per year

Highlights of the interior configuration of the cab

The left and right doors of the cockpit are unobstructed and connected. The central control door lock is equipped with electronic Windows and doors. The seats in the cockpit can be connected into one bunk, allowing you to enjoy a comfortable lying experience.

Mercedes-benz mode gearshift, one-button start, electronic automatic handbrake, reversing camera (with night reversing gray screen protection), ashtray and other functions provide all-round convenience for your driving and riding.
