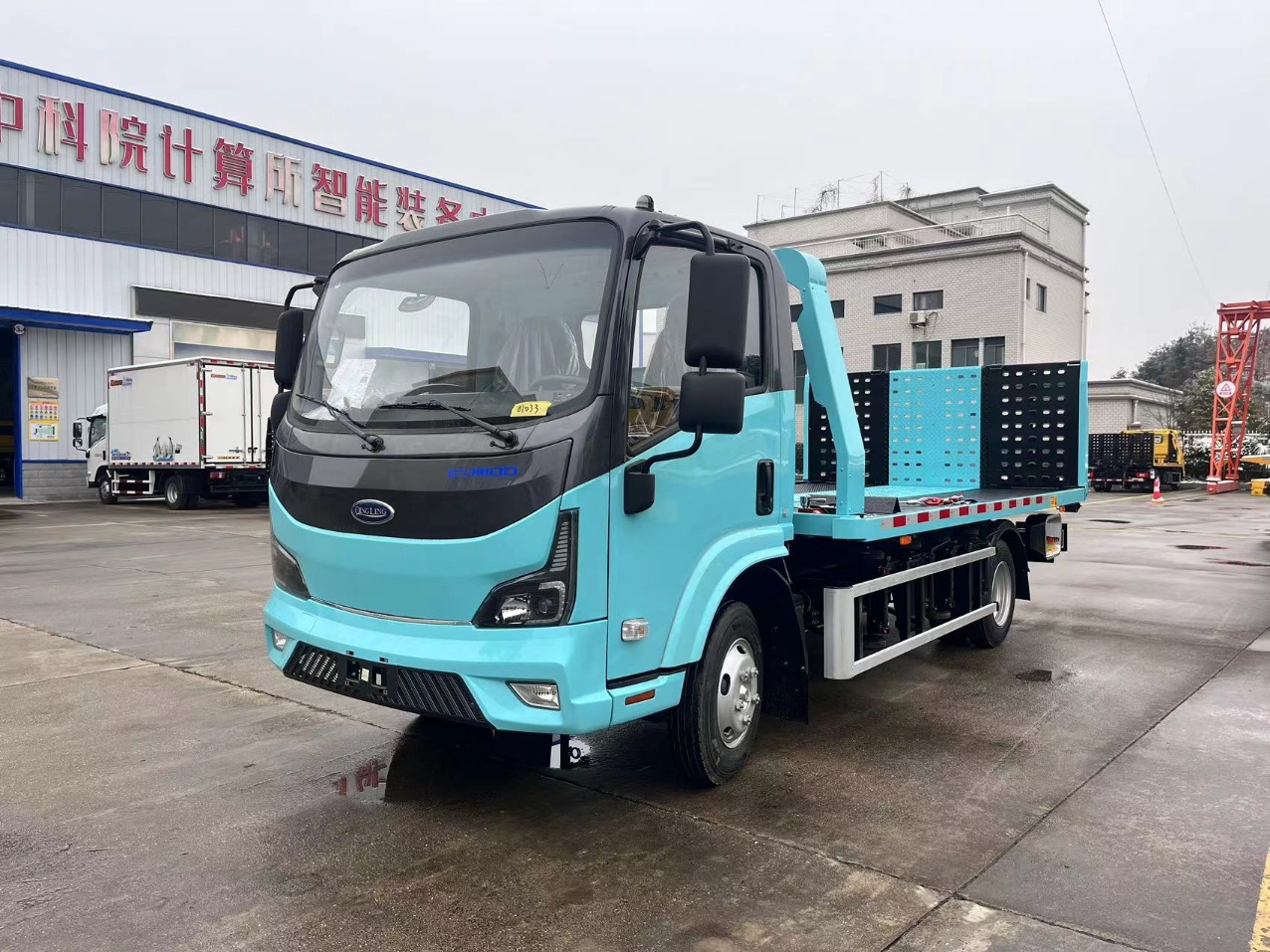

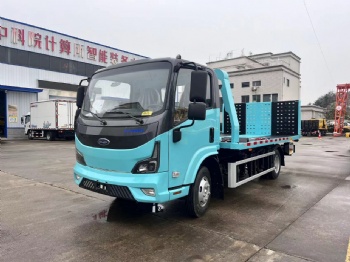

Technical parameters of the entire vehicle
Vehicle model: PFT5071TQZBEV
Vehicle dimensions: 6000*2420*2400
Total mass: 3,700 kg
Chassis technical parameters and configuration
Automatic transmission, capable of accommodating 3 people, oil brake, wheelbase 3360, 6.50 steel wire tires
Chassis motor: Jingjin Electric Technology Co., LTD
Specification and Model :TZ220XSA10
Peak power/rated power :140KW/65KW
Battery: Contemporary Amperex Technology Co., LTD
Total power consumption (kwh) :100.46
The front axle is 2.4T
The rear axle is 3.5T
The service brake type is oil brake drum type
Starting battery voltage :24V
Steel plate spring :3/3+2
Tire :6.50R 16LT 10PR iron
Technical parameters and configuration of the upper assembly
The flat plate frame is welded with high-strength and ultra-high-strength profiles. The flat plate is made of 1.2mm thick ultra-high-strength plates with holes on both sides, a 1040mm long integrated hydraulic folding tail plate, 2.5mm high-strength plates with holes and flanges on both sides, and a 4mm checkered plate fully sealed in the middle. Flat plate telescopic cylinder φ63, flat plate tilting cylinder φ50, tail plate folding cylinder φ50. 4T planetary gear hydraulic winch The first three sets of guide wheel supports of the flat plate are standardly equipped with hook-type guide wheels.
