Heavy-Duty Isuzu Light Truck Chassis with Hydraulic Folding Platform

Chassis technical parameters and configuration

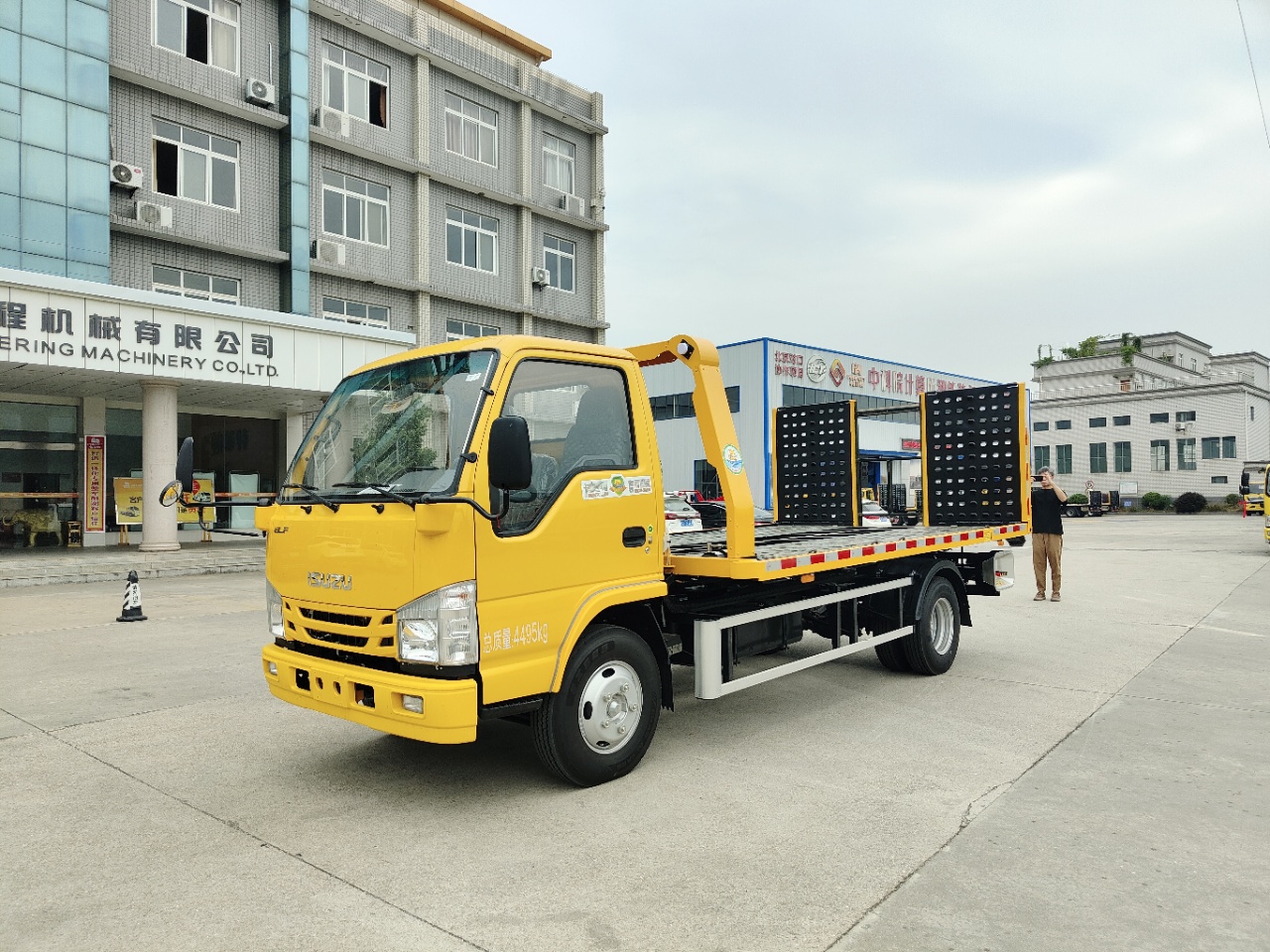

Qingling Isuzu QL1040MVHAY chassis: Air brake; 100P narrow-body cab, 2-seater Isuzu 4KK1N6SD engine, 97KW/132 horsepower; Isuzu MSB-5KM five-speed transmission Wheelbase: 3600mm; 7.00R16LT tire The front axle is 2.4 tons and the rear axle is 4 tons. Air brake braking Iron steel ring Dual-start battery 70L iron diesel tank Iron leaf spring.

Technical parameters and configuration of the upper assembly

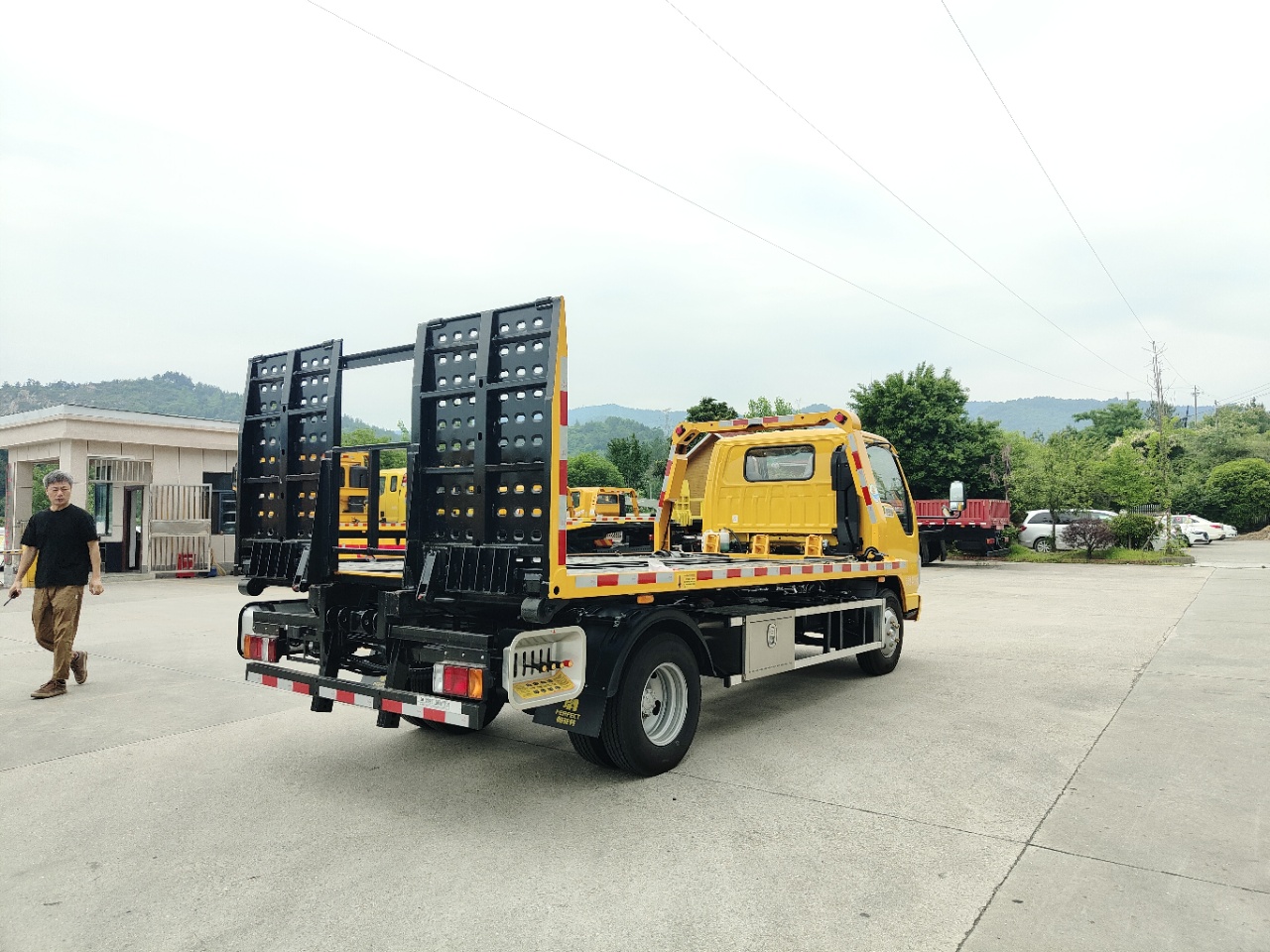

1. Hydraulic folding integrated plate, the bottom plates on both sides of the flat plate are 1.2mm high with perforated plates (4mm checkered plates are optional for full coverage), and the tail plate surface is 2.5mm thick HG70 perforated and flanged plate (4mm checkered plates are optional for middle sealing).

After the tail plate is laid flat, the total length of the plate is 5200mm and the width is 2410mm.

3. There are three sets of pulley supports at the front end of the plate, and a hook-type pulley block is provided at the front of the plate.
